NEOTIME™, ERU COUNTER FLOW, BLUETECH™
NEOTIME™, extra-flat Energy Recovery Unit, high efficiency >90% (EN308), for offices and industrial applications in ventilation and energy recovery.
Indoor installation for false ceiling.
Equipped, as standard, with a EASY control system, communicating in MODBUS, BACNET or WEB. (selection on site).
Backward plug fan or forward centrifugal fan.
Direct drive EC motor.
Module CLEARMOTION™ DU, an innovative and patented solution to decontaminate, depollute and disinfect air and surfaces and guarantee a Very High Indoor Air Quality.
ErP2018 compliant.
EUROVENT N°21.03.72 (L1/D2/T3/TB3/F9), VDI 6022 and VDI 3803 certified range.
Airflows from 100 to 2 400 m3/h.

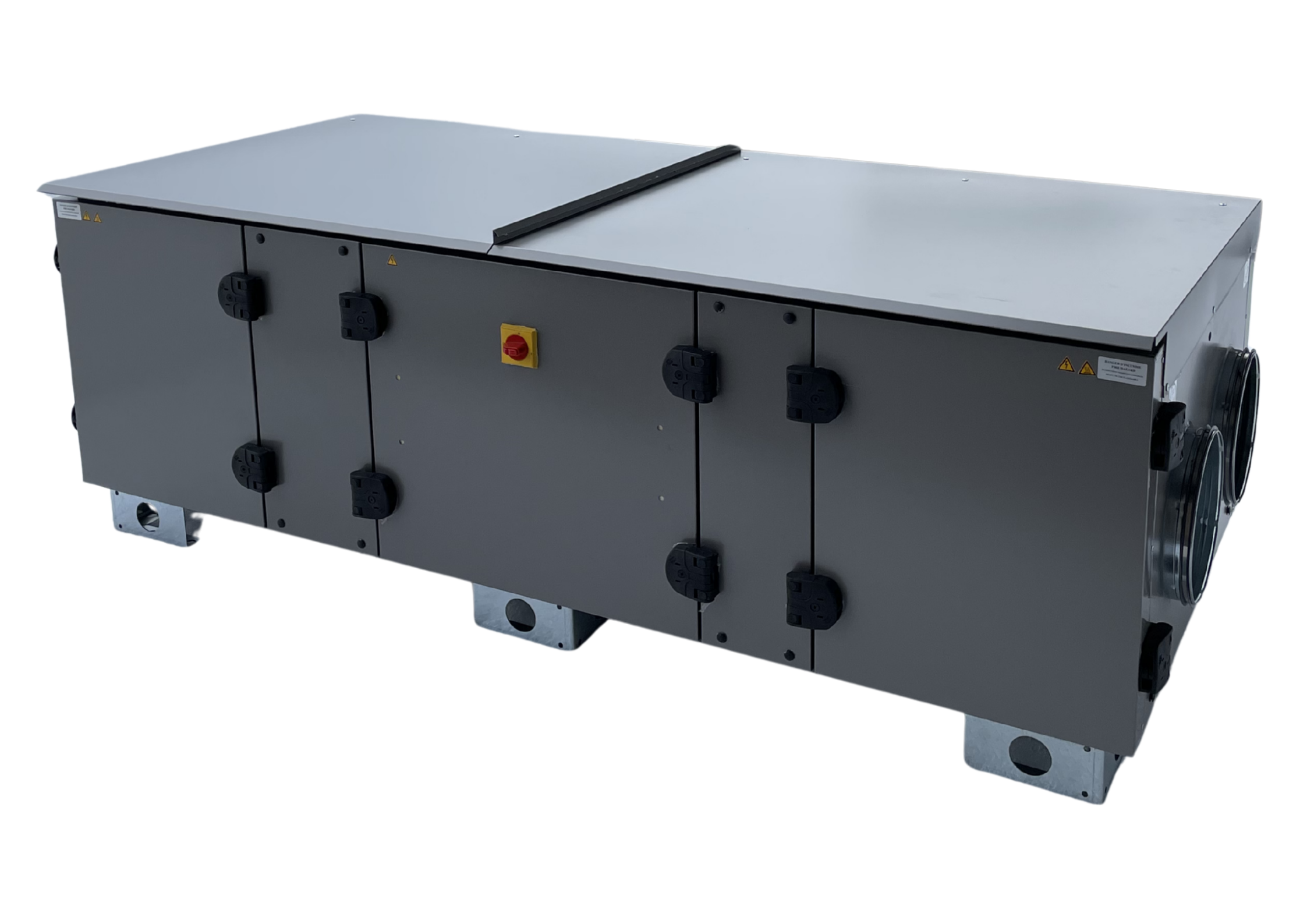

NEOTIME™, extra-flat self-regulated double flow recovery energy unit for false ceiling installation, high efficiency >90%.
EUROVENT N°21.03.72 (L1/D2/T3/TB3/F9)), VDI 6022 and VDI 3803 certified range, ErP2018 compliant.
Communicating in MODBUS, BACNET or WEB.
Self-supporting structure, double-skin RAL9007 exterior, insulated with 25mm M0 high-density mineral wool (60 kg/m3).
Fitted with a EUROVENT-certified aluminium counterflow heat exchanger, F7 ePM1 55% (fresh air) and M5 ePM10 50% (extracted air) filters mounted on a sealed slide, 100% motorised bypass for free-cooling and night-cooling (except SEASON), 4 integrated sensors.
Available in 5 versions (SEASON, FIRST, SMART, PREMIUM, INFINITE), the NEOTIME™ unit can integrate an electric preheater as well as an electric or a water changeover heating coil.
Very low consumption EC motorised fans.
Lockable mains power cut-off switch and LCD remote control (optional) except for the SEASON version, which is fitted with 2 potentiometers.
Dual seal round spigots to guarantee airtightness of networks (ATEC CSTB n° 13-224-V2).
Fire safety function (except SEASON) to control supplied and extracted air fans.
Integrated condensate drain tray inclined with a 2% slope for easy installation.
100% PLUG&PLAY range.
EUROVENT N°21.03.72 (L1/D2/T3/TB3/F9)), VDI 6022 and VDI 3803 certified range, ErP2018 compliant.
Communicating in MODBUS, BACNET or WEB.
Self-supporting structure, double-skin RAL9007 exterior, insulated with 25mm M0 high-density mineral wool (60 kg/m3).
Fitted with a EUROVENT-certified aluminium counterflow heat exchanger, F7 ePM1 55% (fresh air) and M5 ePM10 50% (extracted air) filters mounted on a sealed slide, 100% motorised bypass for free-cooling and night-cooling (except SEASON), 4 integrated sensors.
Available in 5 versions (SEASON, FIRST, SMART, PREMIUM, INFINITE), the NEOTIME™ unit can integrate an electric preheater as well as an electric or a water changeover heating coil.
Very low consumption EC motorised fans.
Lockable mains power cut-off switch and LCD remote control (optional) except for the SEASON version, which is fitted with 2 potentiometers.
Dual seal round spigots to guarantee airtightness of networks (ATEC CSTB n° 13-224-V2).
Fire safety function (except SEASON) to control supplied and extracted air fans.
Integrated condensate drain tray inclined with a 2% slope for easy installation.
100% PLUG&PLAY range.
| Model | Statistical pressure curves |
|---|---|
|
NEOTIME 600 FIRST ECO
Code : CDF022976 |
|
|
NEOTIME 600 FIRST LOBBY
Code : CDF022995 |
|
|
NEOTIME 600 FIRST DIVA
Code : CDF022997 |
|
|
NEOTIME 600 SEASON
Code : CDF023039 |
|
|
NEOTIME 600 SMART ECO
Code : CDF023040 |
|
|
NEOTIME 600 SMART LOBBY
Code : CDF023041 |
|
|
NEOTIME 600 SMART DIVA
Code : CDF023042 |
|
|
NEOTIME 600 PREMIUM BE ECO
Code : CDF023045 |
|
|
NEOTIME 600 PREMIUM BE LOBBY
Code : CDF023046 |
|
|
NEOTIME 600 PREMIUM BE DIVA
Code : CDF023047 |
|
|
NEOTIME 600 PREMIUM CO ECO
Code : CDF023048 |
|
|
NEOTIME 600 PREMIUM CO LOBBY
Code : CDF023049 |
|
|
NEOTIME 600 PREMIUM CO DIVA
Code : CDF023052 |
|
|
NEOTIME 600 INFINITE BE ECO
Code : CDF023068 |
|
|
NEOTIME 600 INFINITE BE LOBBY
Code : CDF023069 |
|
|
NEOTIME 600 INFINITE BE DIVA
Code : CDF023070 |
|
|
NEOTIME 600 INFINITE CO ECO
Code : CDF023072 |
|
|
NEOTIME 600 INFINITE CO LOBBY
Code : CDF023073 |
|
|
NEOTIME 600 INFINITE CO DIVA
Code : CDF023074 |
|
|
NEOTIME 900 FIRST ECO
Code : CDF023092 |
|
|
NEOTIME 900 FIRST LOBBY
Code : CDF023097 |
|
|
NEOTIME 900 FIRST DIVA
Code : CDF023098 |
|
|
NEOTIME 900 SEASON
Code : CDF023099 |
|
|
NEOTIME 900 SMART ECO
Code : CDF023100 |
|
|
NEOTIME 900 SMART LOBBY
Code : CDF023101 |
|
|
NEOTIME 900 SMART DIVA
Code : CDF023102 |
|
|
NEOTIME 900 PREMIUM BE ECO
Code : CDF023103 |
|
|
NEOTIME 900 PREMIUM BE LOBBY
Code : CDF023104 |
|
|
NEOTIME 900 PREMIUM BE DIVA
Code : CDF023105 |
|
|
NEOTIME 900 PREMIUM CO ECO
Code : CDF023106 |
|
|
NEOTIME 900 PREMIUM CO LOBBY
Code : CDF023107 |
|
|
NEOTIME 900 PREMIUM CO DIVA
Code : CDF023108 |
|
|
NEOTIME 900 INFINITE BE ECO
Code : CDF023111 |
|
|
NEOTIME 900 INFINITE BE LOBBY
Code : CDF023112 |
|
|
NEOTIME 900 INFINITE BE DIVA
Code : CDF023113 |
|
|
NEOTIME 900 INFINITE CO ECO
Code : CDF023114 |
|
|
NEOTIME 900 INFINITE CO LOBBY
Code : CDF023115 |
|
|
NEOTIME 900 INFINITE CO DIVA
Code : CDF023116 |
|
|
NEOTIME 1300 FIRST ECO
Code : CDF023169 |
|
|
NEOTIME 1300 FIRST LOBBY
Code : CDF023171 |
|
|
NEOTIME 1300 FIRST DIVA
Code : CDF023172 |
|
|
NEOTIME 1300 SEASON
Code : CDF023173 |
|
|
NEOTIME 1300 SMART ECO
Code : CDF023174 |
|
|
NEOTIME 1300 SMART LOBBY
Code : CDF023175 |
|
|
NEOTIME 1300 SMART DIVA
Code : CDF023176 |
|
|
NEOTIME 1300 PREMIUM BE ECO
Code : CDF023177 |
|
|
NEOTIME 1300 PREMIUM BE LOBBY
Code : CDF023178 |
|
|
NEOTIME 1300 PREMIUM BE DIVA
Code : CDF023179 |
|
|
NEOTIME 1300 PREMIUM CO ECO
Code : CDF023180 |
|
|
NEOTIME 1300 PREMIUM CO LOBBY
Code : CDF023181 |
|
|
NEOTIME 1300 PREMIUM CO DIVA
Code : CDF023182 |
|
|
NEOTIME 1300 INFINITE BE ECO
Code : CDF023183 |
|
|
NEOTIME 1300 INFINITE BE LOBB
Code : CDF023184 |
|
|
NEOTIME 1300 INFINITE BE DIVA
Code : CDF023185 |
|
|
NEOTIME 1300 INFINITE CO ECO
Code : CDF023186 |
|
|
NEOTIME 1300 INFINITE CO LOBB
Code : CDF023187 |
|
|
NEOTIME 1300 INFINITE CO DIVA
Code : CDF023188 |
|
|
NEOTIME 1800 FIRST ECO
Code : CDF023198 |
|
|
NEOTIME 1800 FIRST LOBBY
Code : CDF023199 |
|
|
NEOTIME 1800 FIRST DIVA
Code : CDF023200 |
|
|
NEOTIME 1800 SEASON
Code : CDF023201 |
|
|
NEOTIME 1800 SMART ECO
Code : CDF023202 |
|
|
NEOTIME 1800 SMART LOBBY
Code : CDF023203 |
|
|
NEOTIME 1800 SMART DIVA
Code : CDF023204 |
|
|
NEOTIME 1800 PREMIUM BE ECO
Code : CDF023205 |
|
|
NEOTIME 1800 PREMIUM BE LOBBY
Code : CDF023206 |
|
|
NEOTIME 1800 PREMIUM BE DIVA
Code : CDF023207 |
|
|
NEOTIME 1800 PREMIUM CO ECO
Code : CDF023208 |
|
|
NEOTIME 1800 PREMIUM CO LOBBY
Code : CDF023209 |
|
|
NEOTIME 1800 PREMIUM CO DIVA
Code : CDF023210 |
|
|
NEOTIME 1800 INFINITE BE ECO
Code : CDF023211 |
|
|
NEOTIME 1800 INFINITE BE LOBB
Code : CDF023212 |
|
|
NEOTIME 1800 INFINITE BE DIVA
Code : CDF023213 |
|
|
NEOTIME 1800 INFINITE CO ECO
Code : CDF023214 |
|
|
NEOTIME 1800 INFINITE CO LOBB
Code : CDF023215 |
|
|
NEOTIME 1800 INFINITE CO DIVA
Code : CDF023216 |
|
|
NEOTIME 2500 FIRST ECO
Code : CDF023217 |
|
|
NEOTIME 2500 FIRST LOBBY
Code : CDF023220 |
|
|
NEOTIME 2500 FIRST DIVA
Code : CDF023221 |
|
|
NEOTIME 2500 SEASON
Code : CDF023222 |
|
|
NEOTIME 2500 SMART ECO
Code : CDF023223 |
|
|
NEOTIME 2500 SMART LOBBY
Code : CDF023224 |
|
|
NEOTIME 2500 SMART DIVA
Code : CDF023225 |
|
|
NEOTIME 2500 PREMIUM BE ECO
Code : CDF023226 |
|
|
NEOTIME 2500 PREMIUM BE LOBBY
Code : CDF023227 |
|
|
NEOTIME 2500 PREMIUM BE DIVA
Code : CDF023228 |
|
|
NEOTIME 2500 PREMIUM CO ECO
Code : CDF023229 |
|
|
NEOTIME 2500 PREMIUM CO LOBBY
Code : CDF023230 |
|
|
NEOTIME 2500 PREMIUM CO DIVA
Code : CDF023231 |
|
|
NEOTIME 2500 INFINITE BE ECO
Code : CDF023232 |
|
|
NEOTIME 2500 INFINITE BE LOBB
Code : CDF023233 |
|
|
NEOTIME 2500 INFINITE BE DIVA
Code : CDF023234 |
|
|
NEOTIME 2500 INFINITE CO ECO
Code : CDF023235 |
|
|
NEOTIME 2500 INFINITE CO LOBB
Code : CDF023236 |
|
|
NEOTIME 2500 INFINITE CO DIVA
Code : CDF023237 |
|
|
NEOTIME 600 FIRST MAC2
Code : CDF044813 |
|
|
NEOTIME 600 SMART MAC2
Code : CDF044814 |
|
|
NEOTIME 600 PREMIUM BE MAC2
Code : CDF044815 |
|
|
NEOTIME 600 PREMIUM CO MAC2
Code : CDF044816 |
|
|
NEOTIME 600 INFINITE BE MAC2
Code : CDF044817 |
|
|
NEOTIME 600 INFINITE CO MAC2
Code : CDF044818 |
|
|
NEOTIME 900 FIRST MAC2
Code : CDF044819 |
|
|
NEOTIME 900 SMART MAC2
Code : CDF044820 |
|
|
NEOTIME 900 PREMIUM BE MAC2
Code : CDF044821 |
|
|
NEOTIME 900 PREMIUM CO MAC2
Code : CDF044822 |
|
|
NEOTIME 900 INFINITE BE MAC2
Code : CDF044823 |
|
|
NEOTIME 900 INFINITE CO MAC2
Code : CDF044824 |
|
|
NEOTIME 1300 FIRST MAC2
Code : CDF044825 |
|
|
NEOTIME 1300 SMART MAC2
Code : CDF044826 |
|
|
NEOTIME 1300 PREMIUM BE MAC2
Code : CDF044827 |
|
|
NEOTIME 1300 PREMIUM CO MAC2
Code : CDF044828 |
|
|
NEOTIME 1800 FIRST MAC2
Code : CDF044829 |
|
|
NEOTIME 1800 SMART MAC2
Code : CDF044830 |
|
|
NEOTIME 1800 PREMIUM BE MAC2
Code : CDF044831 |
|
|
NEOTIME 1800 PREMIUM CO MAC2
Code : CDF044832 |
|
|
NEOTIME 2500 FIRST MAC2
Code : CDF044833 |
|
|
NEOTIME 2500 SMART MAC2
Code : CDF044834 |
|
|
NEOTIME 2500 PREMIUM BE MAC2
Code : CDF044835 |
|
|
NEOTIME 2500 PREMIUM CO MAC2
Code : CDF044836 |
|
|
NEOTIME 1300 INFINITE BE MAC2
Code : CDF044837 |
|
|
NEOTIME 1300 INFINITE CO MAC2
Code : CDF044838 |
|
|
NEOTIME 1800 INFINITE BE MAC2
Code : CDF044839 |
|
|
NEOTIME 1800 INFINITE CO MAC2
Code : CDF044840 |
|
|
NEOTIME 2500 INFINITE BE MAC2
Code : CDF044841 |
|
|
NEOTIME 2500 INFINITE CO MAC2
Code : CDF044842 |
|
Very low consumption econological™ solution meets the ErP2009/125/EC directive requirements, savings criteria high efficiency exchanger, EUROVENT certified
100% PLUG&PLAY SET&FORGET™, the NEOTIME™ range is developped, manufactured and tested at our factory
EASY TO INSTALL
Indoor installation on the ground or in a false ceiling
Brackets mounted in the structure to fix the unit at the ceiling with no loss of height to make the installation easy
EASY TO USE AND MAINTAIN
Easy access to filters, mounted on slides, through upstream lateral access traps and removable panels for other internal elements
LCD remote control at a distance up to 100m or one kilometer with a repeater
